LENOVO

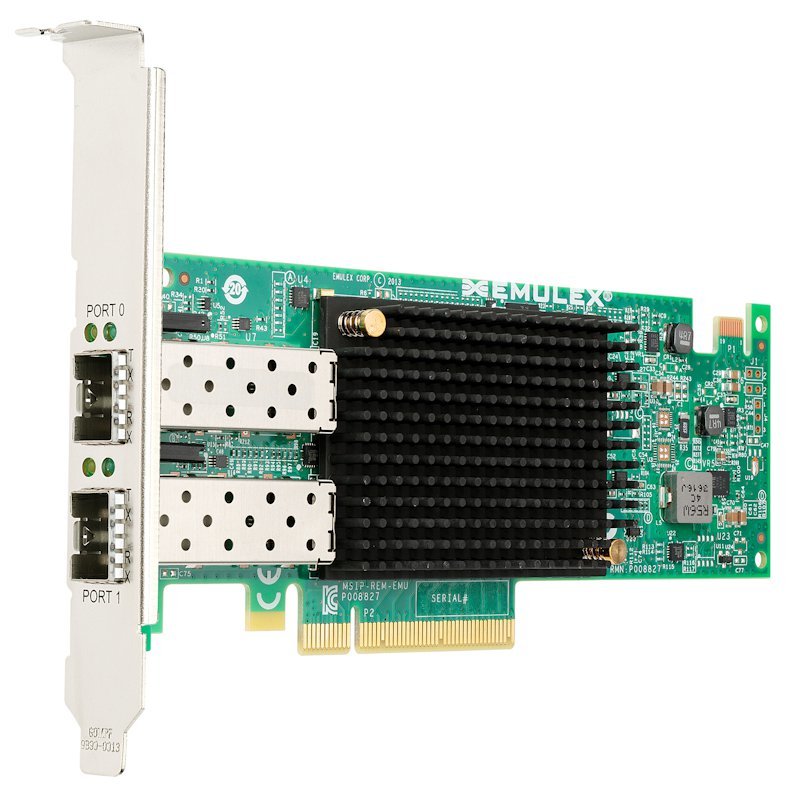

The Emulex Virtual Fabric Adapter

$1,738.00
$1,738.00
$1,738.00
Shipping calculated at checkout.

Want next day delivery? Be quick!
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity. This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions. The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity. These new features help reduce complexity, reduce cost, and improve performance with Lenovo servers.

Technical Specifications

Design
Internal Yes
Network
Jumbo frames 9216
VLAN tagging Yes
iSCSI support Yes
Weight & dimensions
Width 69 mm
Design
Compatible products x3550 M5 x3650 M5 x3850 X6/x3950 X6 nx360 M5 x3750 M4 x3850 X6/x3950 X6
Network
Jumbo frames support Yes
Networking standards IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x
Ports & interfaces
Interface Fiber
Host interface PCI Express
Power
Power consumption (typical) 14.4 W
Network
Maximum data transfer rate 10000 Mbit/s
Ports & interfaces
Fiber ports quantity 2
Network
Quality of Service (QoS) support Yes
Ports & interfaces
Fiber optic connector SFP+
Connectivity technology Wired
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 55 °C
System requirements
Server operating systems supported Windows Server 2012, Windows Server 2012 R2
Operational conditions
Operating relative humidity (H-H) 5 - 95%
