The Emulex Virtual Fabric Adapter

$592.00
$592.00
$592.00
Shipping calculated at checkout.

Want next day delivery? Be quick!

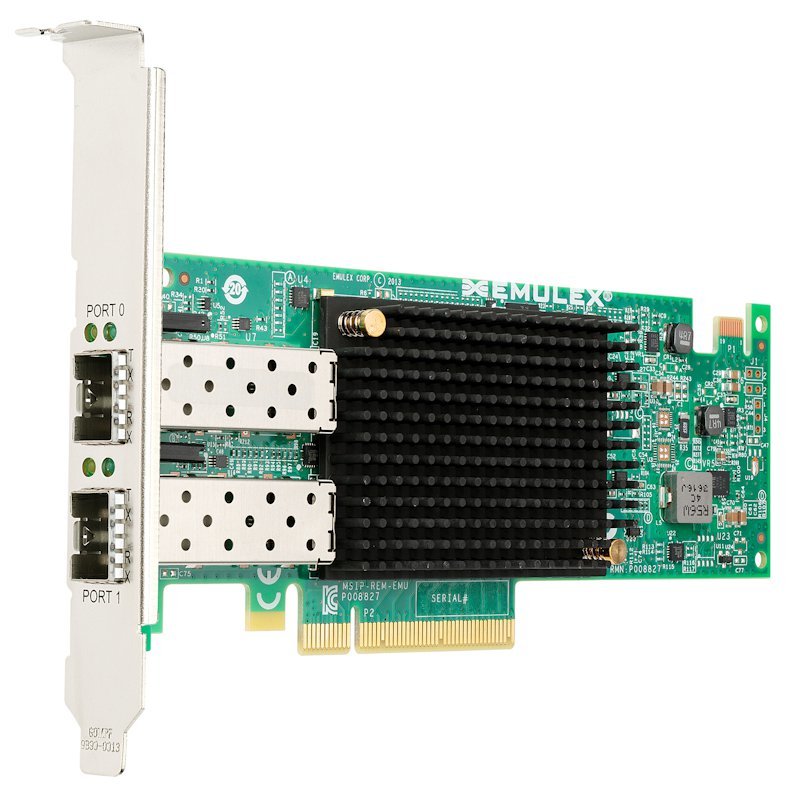

The Emulex Virtual Fabric Adapter 5 (VFA5) Network Adapter Family for System x builds on the foundation of previous generations of Emulex VFAs by delivering performance enhancements and new features that reduce complexity, reduce cost, and improve performance. The Emulex VFA5 family delivers a new set of powerful features and capabilities that are designed for the virtualized enterprise environment, multi-tenant and single-tenant cloud environments, I/O intensive environments, and converged infrastructure environments. The ML2 form factor adapter is shown in the following figure.

Technical Specifications

Design
Internal Yes
Network
Jumbo frames 9216
VLAN tagging Yes
Design
Product colour Black, Green
Network
iSCSI support Yes
Design
Compatible products x3250 M5, x3500 M5, x3550 M5, x3650 M5, x3850 X6/x3950 X6, nx360 M5
Network
Jumbo frames support Yes
Networking standards IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x
Ports & interfaces
Interface Fiber
Network
Ethernet LAN data rates 10000 Mbit/s
Ports & interfaces
Host interface PCI Express
Network
Maximum data transfer rate 10000 Mbit/s
Ports & interfaces
Fiber ports quantity 2
PCI Card form factor Full-height (low-profile)
Fiber optic connector SFP+
Connectivity technology Wired
Operational conditions
Storage temperature (T-T) -40 - 70 °C
System requirements
Compatible operating systems Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T VMware vSphere 5.1 (ESXi) VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi)
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Operating relative humidity (H-H) 5 - 95%
