LENOVO

ConnectX-4 from Mellanox is a

$554.00
$554.00
$554.00
Shipping calculated at checkout.

Want next day delivery? Be quick!

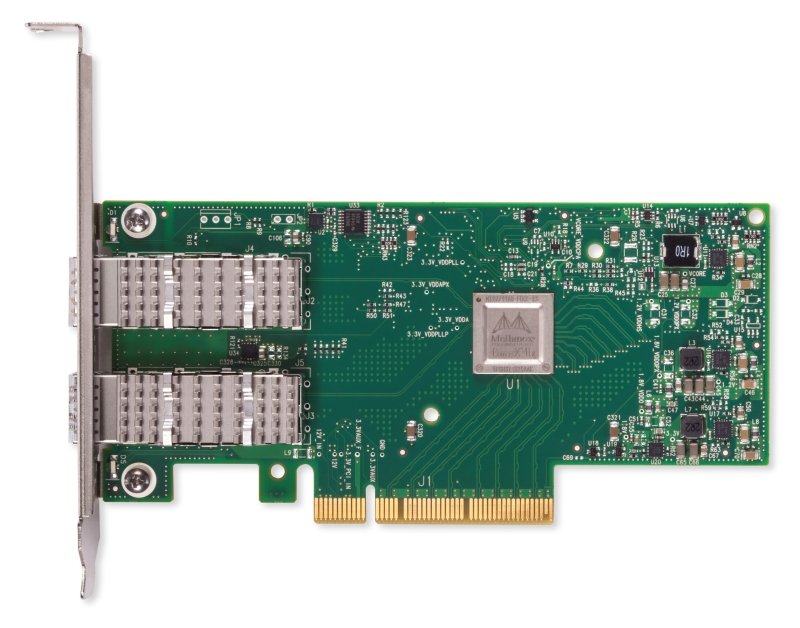

ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapters support either InfiniBand or Ethernet. These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. The following figure shows the Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (the standard heat sink has been removed in this photo).

Technical Specifications

Design
Safety CB, cTUVus, CE
Internal No
Certification CE, FCC, VCCI, ICES, RCM
Component for Server
Product colour Green
Network
Networking standards IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3az
Ports & interfaces
Interface Fiber
PCI version 3.0
Packaging data
Quantity per pack 1 pc(s)
Ports & interfaces
Host interface PCI Express
Network
Maximum data transfer rate 25000 Mbit/s
Ports & interfaces
Fiber ports quantity 2
PCI Card form factor Full-height (low-profile)
Fiber optic connector SFP28
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Ports & interfaces
Connectivity technology Wired
Operational conditions
Storage temperature (T-T) -40 - 70 °C
System requirements
Compatible operating systems Microsoft Windows Server 2012 (no SR-IOV support) Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition, U7 Red Hat Enterprise Linux 7, U2 SUSE LINUX Enterprise Server 11 for AMD64/EM64T, SP4** SUSE LINUX Enterprise Server 12, SP1** VMware ESXi 5.5, U3* VMware ESXi 6.0, U2*
Operational conditions
Operating temperature (T-T) 0 - 55 °C
