LENOVO

The Intel Ethernet Connection X722

$274.00
$274.00
$274.00
Shipping calculated at checkout.

Want next day delivery? Be quick!

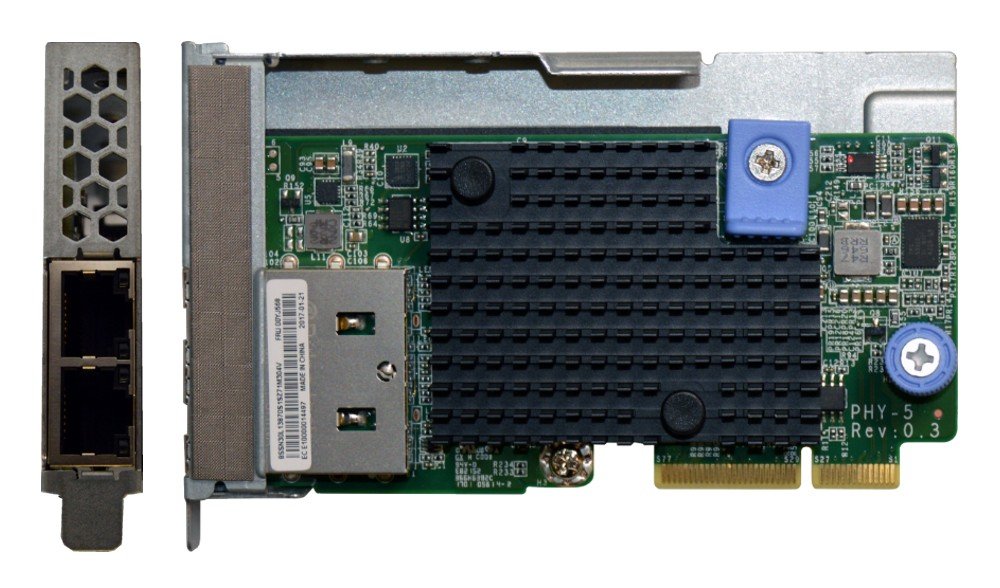

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers. ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model. The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.

Technical Specifications

Design
Chipset Intel® C624
Internal Yes
Certification UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Network
Ethernet LAN Yes
Jumbo frames 9728
VLAN tagging Yes
Design
Product colour Green, Metallic
Compatible products SR630 SR650 SR850 SR860 SR950
Network
Cabling technology 10GBase-T
Security algorithms SNMP
Jumbo frames support Yes
Networking standards IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x
Ports & interfaces
Interface Ethernet
Network
Ethernet LAN data rates 10000 Mbit/s
Ethernet interface type 10 Gigabit Ethernet
Ports & interfaces
Host interface PCI Express
Network
Maximum data transfer rate 10000 Mbit/s
Quality of Service (QoS) support Yes
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 2
The Intel Ethernet Connection X722
